SHIFT UP BESIDE DOWN
Product Description
■  Wire Suspended LED Pendant Luminaire
■  Elegant and slim shape
■  Aluminum Housing
■  Replaceable LED module
■  Optical prism high transmittance PMMA
    diffusor
■  5 year warranty
Downloads

PDS-SHIFT UP BESIDE DOWN.pdf
IES-SHIFT UP BESIDE DOWN.rar
3D-SHIFT UP BESIDE DOWN.rar
II-SHIFT UP BESIDE DOWN.pdf

    Technical Data
  • Model
  • Shift Up Beside Down
  • IP Rating
  • IP20
  • Light Source
  • SMD LED
  • Beam Angle
  • 120°
  • Input Voltage / Power
  • 120 - 240V AC / 30 - 60W
  • Dimming
  • 1-10V, Switch and Dali available
  • Power Factor
  • 0.90
  • Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
  • CRI / SDCM
  • 95+ / 3-
  • Dimensions
  • L x 100mm x 100mm (H3: 3000mm)
  • Lifetime L90 / B10
  • 60,000 hours
  • L x 3.94" x 3.94" ( H3: 118.11")
  • Model
  • 01086010
  • 01089010
  • 01081210
  • 01081510
  • Wattage
  • 2 x 15W
  • 2 x 20W
  • 2 x 25W
  • 2 x 30W
Lumens
3000K
4000K
2,100
2,400
2,800
3,200
3,500
4,000
4,200
4,800
  • Weight
  • kg [lbs]
  • 2.8 [6.2]
  • 3.4 [7.5]
  • 4.0 [8.8]
  • 4.6 [10.1]
  • * L, Length
  • mm [inch]
  • 633 [24.92]
  • 933 [36.73]
  • 1233 [48.54]
  • 1533 [60.35]
    * Custom lengths are available on request

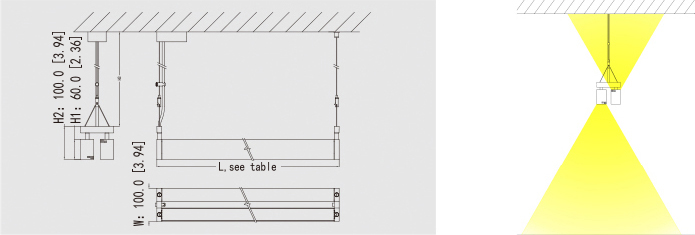

    Dimensions
    Dimension in millimetres [inches in brackets] Tolerance: ±1mm [0.04"]
    Ordering Details
Model
01 - Shift
Type
08 - Up Beside Down
Size -
6010 -
L: 633mm [24.92”]
H: 100mm [3.94”]
9010 -
L: 933mm [36.73”]
H: 100mm [3.94”]
1210 -
L: 1233mm [48.54”]
H: 100mm [3.94”]
1510 -
L: 1533mm [60.35”]
H: 100mm [3.94”]
Finish
1 - Silver

2 - White

3 - Black
CCT
2 - 3000K

4 - 4000K
Dimming
0 - Non-dimmable
1 - 1-10V Dimmable + Switch DIM
2 - DALI Dimmable
