- SHIFT SINGLE UP AND DOWN
- Product Description
- ■ Slim LED Direct and Indirect Luminaire
- ■ Elegant and slim shape
- ■ Aluminum Housing
- ■ Replaceable LED module
- ■ Optical prism high transmittance PMMA
diffusor - ■ 5 year warranty
- Technical Data
- Model
- Shift Single Up and Down
- IP Rating
- IP20
- Light Source
- 50,000 Hours
- Beam Angle
- 120°
- Input Voltage / Power
- 120V - 240V / 25W or 30W
- Dimming
- 1-10V, Switch Dim and DALI
- Power Factor
- 0.90
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- CRI / SDCM
- 95+ / 3-
- Dimensions
- L x 40mm x 60mm (H3: 3000mm)
- Lifetime L90 / B10
- 60,000 Hours
- L x 1.57" x 2.36" (H3: 118.11")
- Model
- 01121260
- 01121860
- Wattage
- 30
- 45
- Lumens
- 3000K
- 4000K
- 2,100
- 3,150
- 2,400
- 3,600
- Weight
- kg [lbs]
- 2.0 [4.40]
- 2.6 [5.72]
- * L, Length
- mm [inch]
- 1233 [48.54]
- 1833 [72.17]
- * Custom lengths are available on request

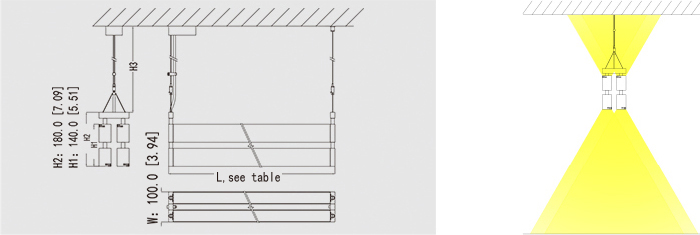

- Dimensions
- Dimension in millimetres [inches in brackets] Tolerance: ±1mm [0.04"]
- Ordering Details
- Model
- 01 - Shift
- Type
- 12 - Single Up & Down
- Size -
- 1260 -
L: 1233mm [48.54”]
H: 60mm [2.36”] - 1860 -
L: 1833mm [72.17”]
H: 60mm [2.36”]
- Finish
- 1 - Silver
2 - White
3 - Black
- CCT
- 2 - 3000K
4 - 4000K
- Dimming
- 0 - Non-dimmable
- 1 - 1-10V Dimmable + Switch DIM
- 2 - DALI Dimmable
